G070VW01 V0 7.0 AUO WLED , 80/80/80/80 (Typ.)(CR≥10) 400 cd/m² (Typ.)

  • 1
  • 2
  • 3

Brand Name : AUO

Model Number : G070VW01 V0

Certification : ISO9001

Place of Origin : Japan

MOQ : 1PCS

Payment Terms : TT / Escrow 10 / Paypal / WesternUnion

Supply Ability : 500PCS

Delivery Time : 1-3 Days

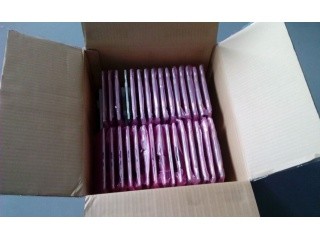

Packaging Details : With Original Factory Package

Pixel Number : 800(RGB)×480 [WVGA] 133PPI

Screen Type : a-Si TFT-LCD, LCM

Color Depth : 262K/16.2M 60% NTSC

Luminance : 400 cd/m² (Typ.)

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Contrast Ratio : 750:1 (Typ.) (TM)

Respons : 20/10 (Typ.)(Tr/Td)

Configuration : RGB Vertical Stripe

Treatment : Antiglare, Hard coating (3H)

Max. Ratings : 30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C

Contact Now

1. HIGHEST QUALITY STANDARD DISPLAYS:

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2. AUO G070VW01 V0 Mechanical Details

Pixel Features : Pixel Format 800(RGB)×480 [WVGA] Dot Pitch 0.0635×0.1905 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.1905×0.1905 mm (H×V) [133PPI]
Mechanical Size : Display Area 152.4×91.44 mm (H×V) Bezel Area 155.2×94.24 mm (H×V)
Outline Dim. 170×111 mm (H×V) Outline Depth 7.5±0.5 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 15:9 (H:V) Shape Style
Holes & Brackets : Without
Other Features : Weight 165/175g (Typ./Max.) Surface Antiglare, Hard coating (3H)

3. AUO G070VW01 V0 Optical Details

Basic Information : Brightness 400 cd/m² (Typ.) Contrast Ratio 750:1 (Typ.) (Transmissive)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction - Response Time 20/10 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.310; Wy:0.330 Color Numbers 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature 6638K White Uniformity 1.30 (Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 59% sRGB 83% coverage
Adobe RGB 62% coverage DCI-P3 62% coverage
Rec.2020 44% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


AUO G070VW01 V0 Application Details

Basic Info : Panel Brand Panel Model G070VW01 V0
Diagonal Size 7.0" Application
Panel Type a-Si TFT-LCD , LCM Model Alias G070VW01 V.0, G070VW01.0
Reliability : Operating Temp. -30 ~ 85 °C Storage Temp. -30 ~ 85 °C
RoHS State Vibration Rating 1.5G (14.7 m/s²)

AUO G070VW01 V0 Electronics Details

Frame Frequency : 60Hz
Reverse Scan : Yes (U/D, L/R)
Power Consumption : 3.7W (Typ.)

AUO G070VW01 V0 Backlight Details

Back-light Features: Lamp Shape 1 string Lamp Type WLED Life Time 50K(Min.) (Hours)
Replacement Replaceable Amount - Position Edge light type
Lamp Electrical : Voltage Input 32.0/36.5V (Typ./Max.) Current Input 80/84mA (Typ./Max.)
Consumption 2.56W (Typ.)
Interface Features : Type Connector Position - Lamp Driver With LED Driver
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
E&T 3808K-F04N-02R 1.25 mm 4 pins 1 pcs
Driver Electrical : Voltage Input 12.0V (Typ.) Current Input 240mA (Typ.)
Consumption 2.88/3.6W (Typ./Max.)

AUO G070VW01 V0 Interface Details

Signal Systerm : LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 0.24/0.26A (Typ./Max.)
Consumption 0.8/0.96W (Typ./Max.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
HRS DF19LA-20P-1H 1.0 mm 20 pins 1 pcs LVDS-20P1C8B-140A
