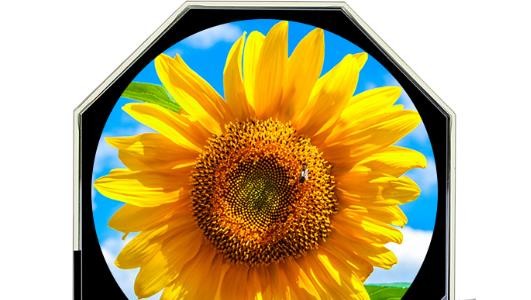

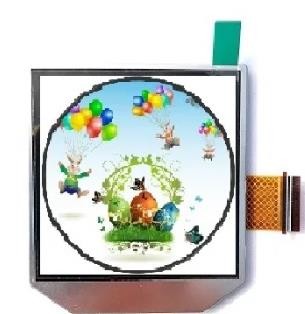

TM030XDHG30 TIANMA 2.1" 480(RGB)×480 450CD/M2 INDUSTRIAL LCD DISPLAY

Name: TM030XDHG30 TIANMA 21quot 480RGB480 450CDM2 INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

Quality TM030XDHG30 TIANMA 2.1" 480(RGB)×480 450CD/M2 INDUSTRIAL LCD DISPLAY for sale

Brand Name : TIANMA

Model Number : TM030XDHG30

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 3000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM030XDHG30

BRAND : TIANMA

SIZE : 2.1INCH

RESOLUTION : 480(RGB)×480, 228PPI

BRIGHTNESS : 450 cd/m² (Typ.)

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM030XDHG30 Application Details

Basic Info :	Panel Brand		Panel Model	TM030XDHG30
	Diagonal Size	2.1"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-30 ~ 80 °C
Reliability :	RoHS State		Vibration Rating	-
Specific Features :
Remarks :	for Google Nest Learning Thermosta

TIANMA TM030XDHG30 Mechanical Details

Pixel Features :	Pixel Format	480(RGB)×480	Dot Pitch	0.037×0.111 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.111×0.111 mm (H×V) [228PPI]
Mechanical Size :	Display Area	53.28×53.28 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	58.01×61.38 mm (H×V)	Outline Depth	2.45±0.2 mm
Outline Features :	Form Factor	Flat Circular	Orientation	Landscape / Portrait
Outline Features :	Aspect Ratio	1:1 (H:V)	Shape Style
Other Features :	Weight	16.9g (Typ.)	Surface	Hard coating

TIANMA TM030XDHG30 Optical Details

Basic Information :	Brightness	450 cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Optical Mode	SFT, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	25 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Color Numbers	16.7M (8-bit)
Color Performance :	Color Temperature	6638K	White Uniformity	1.25/1.33 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	53%	sRGB	73% coverage
	Adobe RGB	55% coverage	DCI-P3	55% coverage
	Rec.2020	39% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020

TIANMA TM030XDHG30 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	No
D-IC Detail :	COG Built-in HX8369A

TIANMA TM030XDHG30 Backlight Details

Back-light Features:	Lamp Shape	1 string	Lamp Type	WLED	Life Time	-
Back-light Features:	Replacement	-	Amount	4S1P	Position	Edge light type
Lamp Electrical :	Voltage Input	12.8V (Typ.)		Current Input	20mA (Typ.)
Lamp Electrical :	Consumption	256mW (Typ.)
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	No

TIANMA TM030XDHG30 Interface Details

Signal Systerm :	Parallel RGB (1 ch, 8-bit) + SPI			Logic Voltage	-
Signal Electrical :	Voltage Input	(1.8/2.8)/2.8V (Typ.)(IOVCC/VCC)		Current Input	-
Signal Electrical :	Consumption	94/145mW (Typ./Max.)
Interface Features :	Type	FPC	Position	-
FPC Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
FPC Detail :			0.3 mm	41 pins	1 pcs

TIANMA TM030XDHG30 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	504 pcs / box	14.4±0.7 Kgs	544×365×250 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
