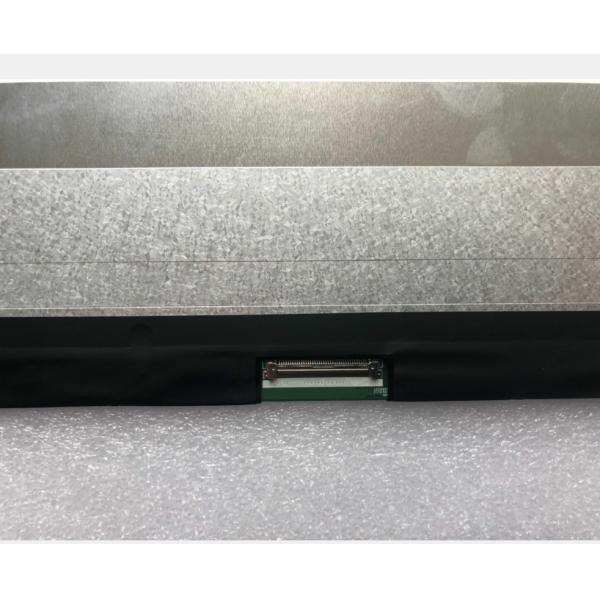

N173HCE-E3B Innolux 17.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

Name: N173HCEE3B Innolux 173quot 1920RGB1080 500 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

Quality N173HCE-E3B Innolux 17.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY for sale

Brand Name : INNOLUX

Model Number : N173HCE-E3B

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : N173HCE-E3B

BRAND : INNOLUX

SIZE : 17.3 inch

BRIGHTNESS : 500CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 127PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

Innolux N173HCE-E3B Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		N173HCE-E3B	a-Si TFT-LCD , LCM	CMN174A
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

Innolux N173HCE-E3B Mechanical Features

Panel Size :	17.3 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.0663×0.1989 mm	0.1989×0.1989 mm [127PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	381.888×214.812 mm	-	389.89×238.31 mm	3.3/3.5 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type	Flat (PCBA Flat, T3.4~4.0mm)
Fixation :	Without
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	475/475g (Typ./Max.)	Antiglare, Hard coating (3H)

Innolux N173HCE-E3B Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	500 cd/m² (Typ.)	AAS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	89/89/89/89 (Typ.)(CR≥10)	Symmetry	11/9 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	96%	100%	88%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	100%	72%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.33/1.54 (Max.)(5/13 points)

Innolux N173HCE-E3B Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	235/258mA (Typ./Max.)		3.3V (Typ.)			0.85W (Max.)
Interface Features :	Position	Type	Interface
Interface Features :		Connector	eDP (2 Lanes), eDP1.2
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	I-PEX	20455-030E-76	1 pcs	0.5 mm	30 pins	EDP-30P2L-020A

Innolux N173HCE-E3B Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	-	-	15K(Min.)	-
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Included in panel signal interface	With LED Driver
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	567/588mA (Typ./Max.)		6.0/12.0/20.0V (Min./Typ./Max.)			7.6W (Max.)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
